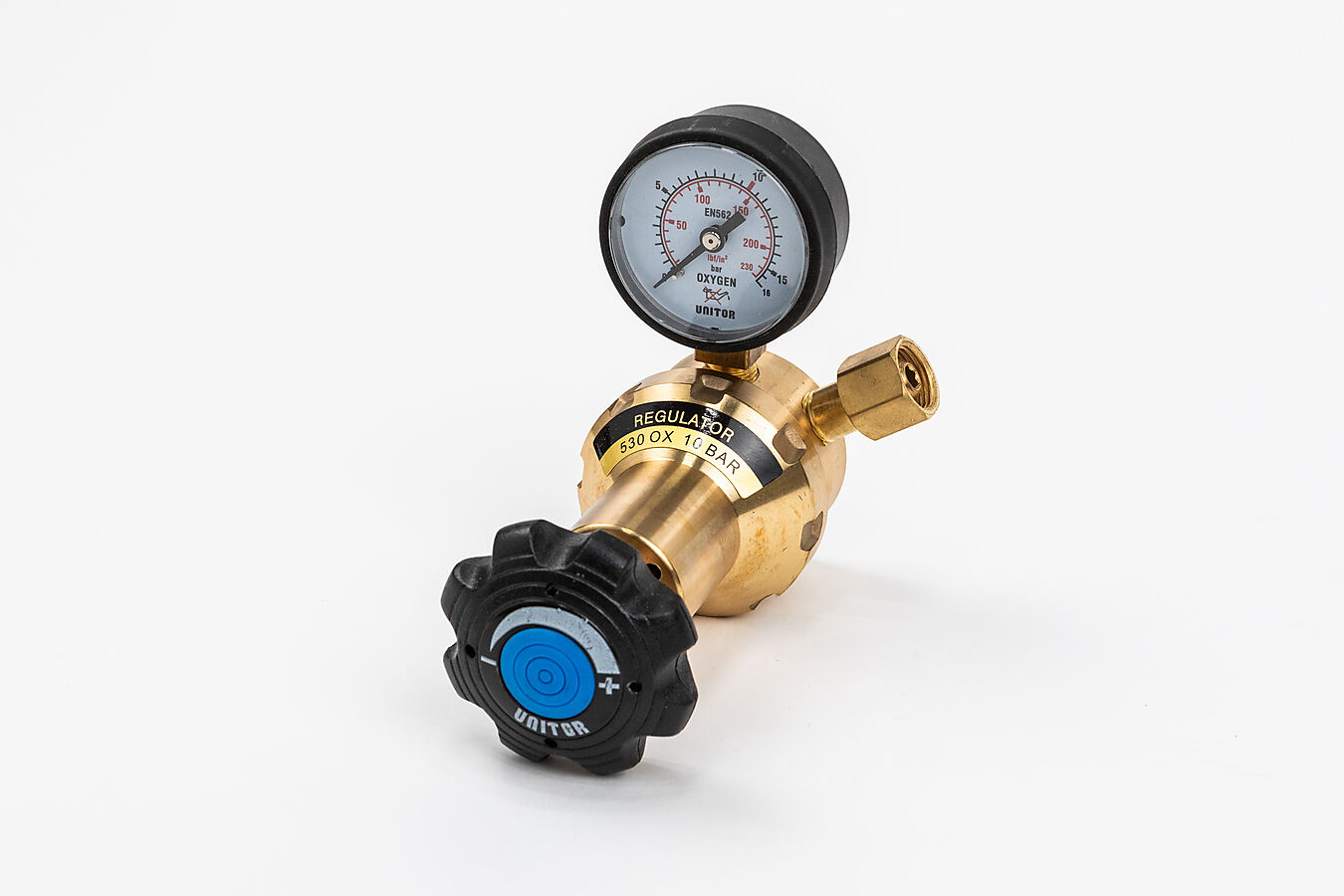

REGULATOR 530 OX PRESSURE 0-10 BAR FOR OUTLET STATION
Regulator 530 OX is an oxygen pressure regulator (0–10 bar) for outlet stations. Provides precise and safe control in oxygen gas distribution systems.
Description
Regulator 530 OX is a high-quality oxygen pressure regulator designed for use in outlet stations and gas distribution systems.
It ensures precise and reliable pressure control for oxygen supplied from centralized distribution systems to user points.
Manufactured according to EN ISO 7291 / 2503, this regulator meets international safety and performance standards for industrial and marine applications.
Product Description
The Regulator 530 OX provides steady outlet pressure (0–10 bar) for oxygen service and includes a clearly marked dual-scale gauge (bar and psi) for easy pressure reading.
It is fitted with standard hose connections (¼” and 3/8″) and features color-coded control knobs for quick and safe gas identification.
All regulators are delivered with spare washers and are compatible with Unitor™ gas distribution systems and Unitor™ outlet stations.
The regulator is suitable for a wide range of oxygen-related operations, including welding, cutting, heating, and general gas supply control.
Key Features
-
Reliable pressure control up to 10 bar outlet pressure
-
Designed for use with oxygen gas (O₂)
-
Color-coded control knobs for clear gas identification
-
Compatible with Unitor™ gas distribution systems
-
Dual pressure gauge (bar / psi) for accurate monitoring
-
Manufactured according to EN ISO 7291 / 2503
-
Robust brass construction for long service life
Benefits
-
Provides safe working conditions in compliance with ISO standards
-
Compatible with all standard hose dimensions
-
Ensures consistent performance and precise gas regulation
-
Supplied ready for installation with all necessary fittings
Applications
-
Oxygen pressure control at outlet stations
-
Gas distribution panels and welding stations
-
Industrial and marine oxygen systems
-
Suitable for onboard or onshore installations
Specifications
| Parameter | Value |
|---|---|
| Gas type | Oxygen (O₂) |
| Inlet pressure | Up to 200 bar |
| Outlet pressure | 0–10 bar |
| Gauge | Dual scale (bar / psi) |
| Material | Brass / high-strength alloys |
| Standards | EN ISO 7291 / 2503 |
Safety Information
-
Only use with approved oxygen equipment and compatible fittings.
-
Do not use with flammable gases or fuels.
-
Perform regular leak tests and maintenance inspections.
-
Store in a dry, ventilated area away from grease and oil contamination.
Documents
📄 Product Data Sheet (PDS) and Safety Data Sheet (SDS) available on request.
💡 Regulator 530 OX – precision oxygen regulator designed for safe and reliable pressure control in industrial and marine gas systems.
